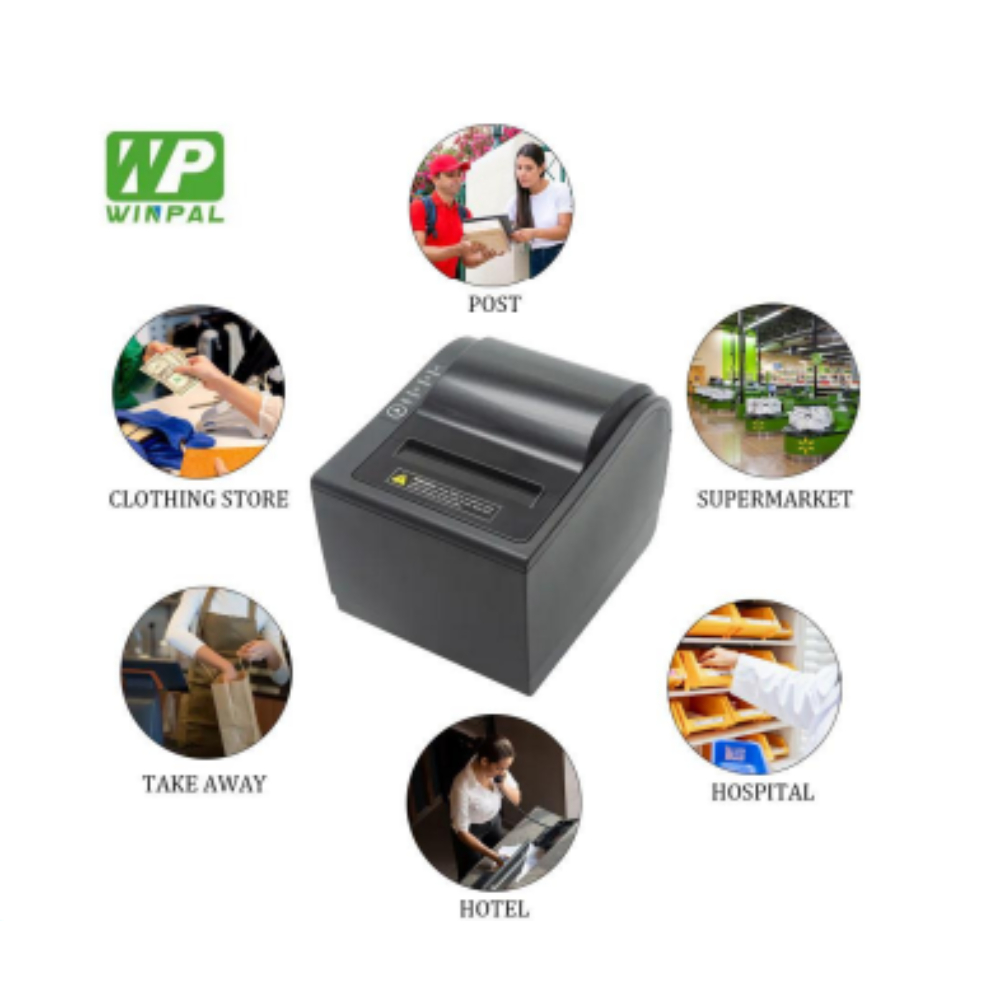

THEMAL PRINTER

Description

KEY FEATURE

1. IAP upgrade online
2. Multiple Interface Connections, Auto Cutter, Wall-mounted
3. Queuing machine and POS printer, 2 in 1
4. DHCP and saving paper function
5. Sound And Light Alarm Function Optional (300mm/s)
6. 58/80mm Paper Width Switchable (300mm/s)
7. Support Page Mode (300mm/s)
8. Support QR code and PDF417 Printing

Printing

• Printing width – 72mm
• Column capacity – 576 dots/line or 512 dots/line
• Printing speed – 300mm/s

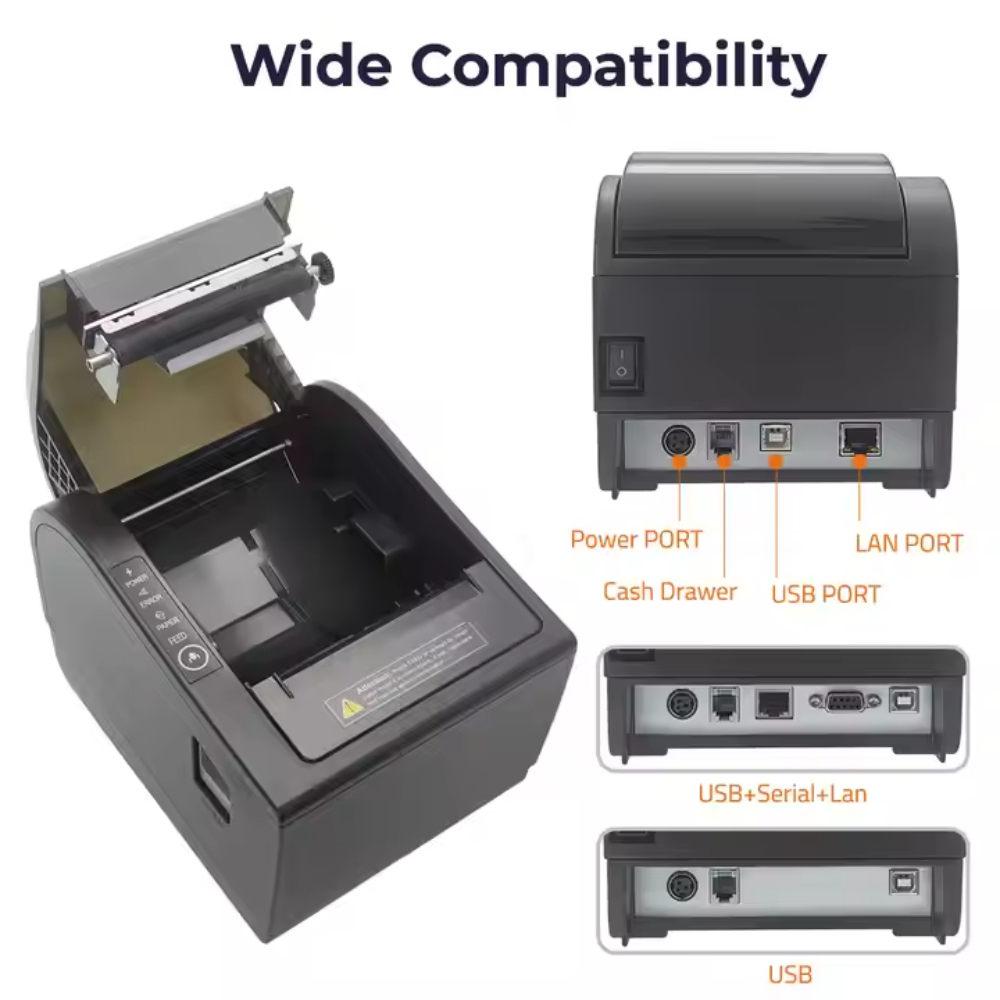

• Interface – USB/LAN/USB+SERIAL/USB+LAN/USB+Serial+LAN(WIFI,BT Optional)
• Paper width – 79.5±0.5mm×φ80mm
• Paper thickness – 0.06-0.08mm
• Line spacing – 3.75mm (Adjustable by commands)
• Print command – ESC/POS
• Character size – ANK,Font A:1.5×3.0mm(12×24 dots)Font B:1.1×2.1mm(9×17 dots) simplified Chinese,traditional Chinese:3.0×3.0mm(24×24 dots)
• Graphics – Monochrome BMP and other image files can be downloaded to FLASH
• Sensors
  1.Black mark sensor
  2.Photoelectric sensor
• Beeper and light alarm  – Support(Optional)
• Auto cutter – Partial

Barcode Character

• Extension character sheet –  PC437(Std.Europe) , (Katakana) , PC850 ( Multilingual) , PC860(Portugal) , PC863(Canadian),PC865(Nordic),(West Europe),(Greek) (Hebrew),(East Europe), (Iran),(WPC1252),PC866(Cyrillic#2),PC852(Latin2),(PC858) ,(IranII), (Latvian),(Arabic),(PT1511251)
• 1D code – UPC-A/UPCE/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
• 2D code – QR CODE;PDF417

Buffer

• Input buffer – USB/USB+Serial(96Kbytes),LAN/USB+LAN(256 Kbytes),USB+LAN+SERIAL 260mm/s (256Kbytes),USB+LAN+SERIAL 300mm/s (4096Kbytes)
• NV Flash – 256Kbytes

Power

• Power adaptor –
  • Input:AC 100-240V/50~60Hz
  • Output:DC 24V/2.5A
• Printer voltage – Input:DC 24V/2.5A
• Cash drawer output – DC 24V/1A

Physical characteristics

• Color – Black
• Weight – 1.0 KG
• Dimensions – 180*140*127mm(D*W*H)

Environmental Requirements

• Work environment – Temperature (0~45℃) humidity(10~80%)(non-condensing)
• Storage environment – Temperature(-10~60℃) humidity(10~90%)

Reliability

• Cutter life – 1.5 million cuts
• Printer head life – 150KM

Driver

• Drivers – Win 9X/Win 2000/Win 2003/Win XP/Win 7/Win 8/Win 10/Linux
