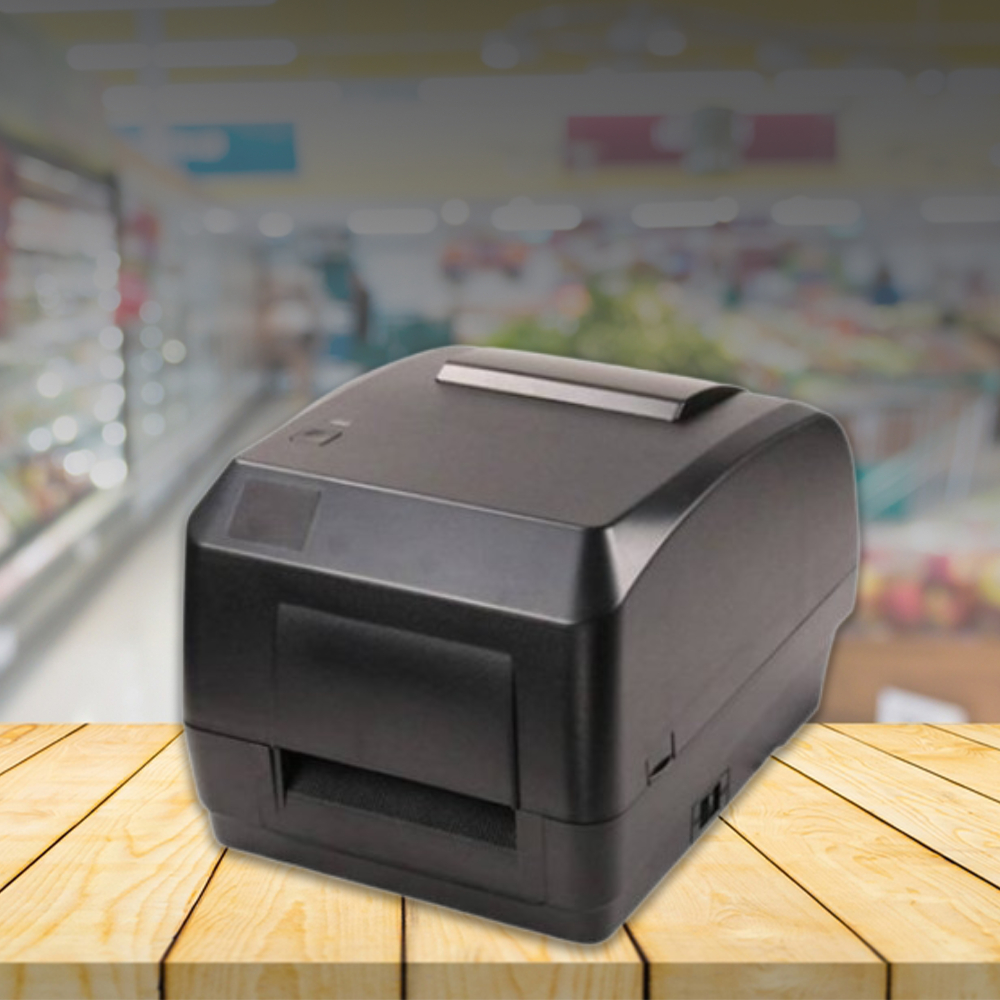

BARCODE PRINTER (THERMAL TRANSFER)

Description

Model WP300A

Printing Features

• Resolution : 203 DPI 300 DPI
• Printing method : T hermal Transfer / Direct Thermal
• Max.print speed : 127 mm (5”)/s Max.101.6 mm (4″)/s
• Max.print width : 108 mm (4.25″) 104 mm (4.09″)
• Max.print length : 2286 mm (90”) 1016 mm (40”)

Media

• Media type : Continuous, gap, black mark, fan-fold and punched hole
• Media width : 25.4-118mm (1.0”-4.6”)
• Media thickness : 0.06~0.254 mm (2.36~10mil)
• Media core diameter : 25.4 ~ 76.2 mm (1 “~ 3 “)
• Label length : 10~2286 mm(0.39″ ~ 90″ ) 10~1016 mm(0.39″ ~ 40″)
• Label roll capacity : 127 mm (5“) (External diameter)
• Ribbon capacity : Max.300m
• Ribbon width : 110 mm

Performance Features

• Processor : 32-bit CPU
• Memory : 4MB Flash Memory, 8MB SDRAM, SD card reader for Flash memory expansion, up to 4 GB
• Interface : Standard: USB+TF card Optional: Serial/LAN/Bluetooth/WIFI/Parallel
• Sensors :
  1. Gap Sensor
  2. Cover Opening Sensor
  3. Black Mark Sensor
  4. Ribbon Sensor

Fonts/Graphics/Symbologies

• Internal fonts : 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software
• 1D bar code : Code 39, Code 93, Code 128UCC, Code 128 ，subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
• 2D bar code : PDF-417, Maxicode, DataMatrix, QR code, Aztecl
• Rotation : 0°、90°、180°、270°
• Emulation : TSPL、EPL、ZPL、DPL

Physical Features

• Dimension : 302.5*234*194.8mm(D*W*H)
• Weight : 2.6 KG

Reliability

• Printer head life : 30 KM

Software

• Driver : Windows/Linux/Mac
• SDK : Windows/Android/IOS

Power supply

• Input : AC 100-240V,1.8A, 50-60Hz
• Output : DC 24V, 2.5A, 60W

Options

• Factory Options
  1. Peeler
  2. Cutter
• Dealer Options
  1. External paper roll holder and 1″paper roll spindle
  2. Bluetooth module (RS-232C transmission interface)
  3. WIFI module
  4. Extension board for external paper roll holder

Environmental Conditions

• Operation environment : -5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% noncondensing
• Storage environment : -40 ~ 60°C（-40~140°F），Humidity:10 ~ 90% noncondensing
